Choosing the Right Ball screws for Your Application

Teccneex Precision Motion Engineering is a leading ball screw manufacturers in Pune, suppliers and dealers in Pune, are providing the best quality of ball screws. Our selection of Ball screws and supporting units—anything from small Ø4 mm miniature diameters up to heavy-duty Ø120 mm shafts—is engineered to deliver low-friction movement, high accuracy, and long life. With up to 220,000 Dm-N values, we have a solution for anything from delicate micro-assembly tools right up to robust industrial machines.

Ball Screw Suppliers and Dealers in Pune

Why Ball screws are Important to Modern Engineering?

Ball screws form the foundation of linear motion systems. They translate rotary motion into precise linear motion efficiently, and for this reason, they are an essential in sectors where speed, repetition, and minimal friction are a requirement. Our systems at Teccneex are not only designed to surpass these requirements but also reduce noise, conserve space, and support overloading.

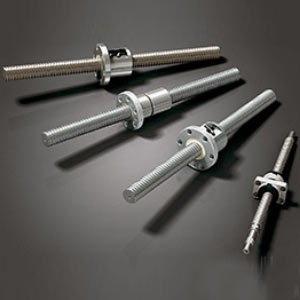

Types and Configurations

Being a top Ball screw manufacturers in Pune, we are offering multiple types such as:

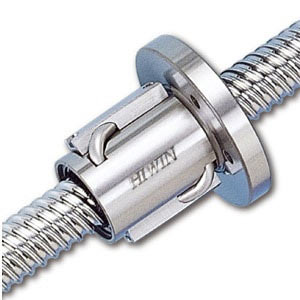

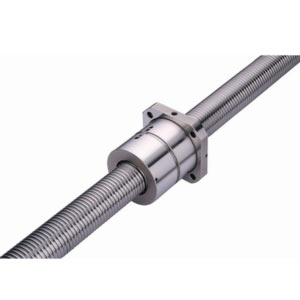

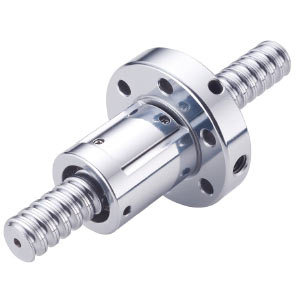

Precision Ground Ball screws Series (Full Nut Styles)

These Ball screws are manufactured through precision grinding to achieve high accuracy, repeatability, and smooth motion. They are typically used in CNC machinery, robotics, semiconductor, and high-precision automation systems.

Standard Nut Configurations

1. FSV — Flange end, single nut, tube above nut diameter.

Ideal when tube routing outside the nut is preferred.
Provides compactness in diameter but requires more radial space.

2. FSW — Flange end, single nut, tube within nut diameter.

Tube return is inside nut diameter →more compact design.
Popular for tight-space machine axes.

3. FDV — Flange end, double nut, tube above nut diameter.

Double nut →higher stiffness, preloaded for zero backlash.
Suited for applications where rigidity is critical.

4. FDW — Flange end, double nut, tube within nut diameter.

Combines compactness with double nut preload stiffness.
Commonly used in precision machining axes.

Special Precision Configurations

1. PFDW Type 1 — Flange-to-flange, double nut, tube within diameter.
Enhanced stiffness with flange-to-flange configuration.
2. PFDW Type 2 — Large lead, flange end, compression preload, double nut, tube within diameter.
Designed for high-speed motion and large lead pitches.
3. PFDW (Double-start) — Large lead, flange end, compression preload, double nut, tube within diameter, double-start screw.
Achieves high linear travel per revolution for speed-sensitive axes.
4. PFDI — Flange-to-flange, double nut, internal recirculation cap.
Combines quiet circulation with very rigid double nut preload.
5. OFSW — Offset-pitch preload, flange end, single nut, tube within diameter.
Preload achieved by pitch offset rather than double nut.
6. OFSW Type 2 — Similar to OFSW but optimized for alternate preload ranges.
7. OFSI — Offset-pitch preload, flange end, single nut, internal recirculation cap.
Low-noise preload without needing a second nut.
8. DFSV — Double-start, flange mount, single nut, tube above diameter.
Offers higher speed capability with a double-start screw.
9. DFSH — High-lead double-start, flange mount, single nut, end-cap design.
Compact, fast, and efficient for long-travel machines.
10. QFSH — High-lead quad-start, flange mount, single nut, end-cap design.
Four-start screw for ultra-fast travel per revolution.

Super-S Precision Ground Subseries

Engineered for low noise, compact form factor, and extremely high Dm-N values (up to 220,000).

Hiwin’s Super-S subseries belongs to the Precision Ground category but is purpose-built for applications demanding quiet running, high acceleration, and compact nut geometry.

FSC (Super-S) — Flange, single nut
Compact, low-noise nut suitable for tight installations.
Supports extremely high acceleration and deceleration rates.
FDC (Super-S) — Flange, double nut
Same low-noise and compact advantages as FSC.
Uses a double nut with preload for increased stiffness and zero backlash.

R1 Rotating Nut (Precision Ground)

Innovative configuration where the nut rotates and the shaft remains fixed. Instead of rotating the screw shaft, the nut is driven directly, which prevents issues like shaft whirling in long screws at high speeds.

Key Features
Integrated support bearing →zero backlash and high stiffness.
Reduced inertia →smaller motor size requirements.

B) Rolled Ball screws Series (Full Nut Styles)

Cost-effective, fast-to-deliver, suitable for medium-precision applications.

Unlike ground Ball screws, these are produced through a rolling process, which reduces cost and lead time while still providing smooth motion. They’re suitable for general automation, transport axes, and cost-sensitive CNC machines.

Rolled Nut Configurations

1. FSW — Flange, single nut, tube within diameter.
Compact design for limited radial space.
2. RSV — Round, single nut, tube above diameter.
Simple, cylindrical housing-friendly format.
3. RSB — Round, single nut, bonded return tube.
Lower-cost option, simple return mechanism.
4. FSB — Flange, single nut, bonded return tube.
Combines flange mounting with bonded return →economical choice.
5. FSV — Flange, single nut, tube above diameter.
External return tube, robust and simple design.

C) Super-S Series (Low-Noise, Compact, High Dm-N)

The Super-S Series is dedicated to quiet, high-speed applications. While similar to the Precision Ground Super-S, this series is highlighted as a separate product line due to its compactness and speed capabilities.

1. FSC (Super-S)
Flange type, single-nut, compact design.
Designed for low-noise operation with Dm-N values up to 220,000.
2. FDC (Super-S)
Flange type, double-nut with preload for added stiffness.
Offers the same low-noise performance as the FSC variant.

D) Super-T & Super-Z Series (Low Vibration / Compact Build)

1. Super-T Series

The Super-T Series features a tangential circulation design, where balls exit tangentially to the screw lead.

Produces less vibration and ensures smoother rotation compared to tube recirculation.

2. Super-Z Series

The Super-Z Series uses a tangential path circulation system but is optimized for a more compact nut design.

Nut diameter is reduced by 15–30% compared to standard designs.

Miniature Ground Ball screws

These Ball screws are precision-ground in miniature diameters (Ø4–Ø16 mm), optimized for compact equipment, light loads, and short strokes.

1. FSI (Miniature Ground)
Flange nut with a recirculation cap.
Extremely compact, quiet, and highly precise.
2. FSB (Miniature Ground)
Flange nut with a bonded return tube.
A simpler, cost-effective miniature design.
3. FSW (Miniature Ground)
Flange nut with a tube built within the diameter.
Saves radial space while maintaining rigidity.

F) R1 Rotating Nut Series

The R1 Rotating Nut Series is designed for high-speed, high-stiffness axes, where rotating the nut is more effective than rotating the shaft.

G) Heavy-Load Drive Ball screws

The Heavy-Load Drive Series is engineered for extreme thrust demands in industrial machinery.

Performance

Load capacity is 2–3× greater than standard Ball screws.
Designed for high acceleration under heavy thrust.
Achieves JIS C7 accuracy, suitable for heavy-load precision.

H) Ball screws Support Units (Hiwin WBK Series)

The Hiwin WBK Series provides standardized support solutions for fixed and support ends of Ball screws. Each unit is factory-matched for high stiffness, accuracy, and simple assembly.

Components Included
Housing body.
High-precision angular contact bearings.
Cover plate, spacers, oil seals, lock nut, and set screws.
Configurations
DF — Standard fixed end.
DFD — Double-support fixed end for greater rigidity.
DFF — Heavy-load fixed end designed for maximum thrust.

Key Features of Ball screws

As a prominent ball screws suppliers in Pune, these all types of ball screws are filled with new features such as:

Flexible Range: From Ø4 mm miniature small Ø4 mm screws for miniaturized devices to Ø120 mm heavy-duty screws.
Precision Versions: Precision-ground for high accuracy or cost-efficient rolled versions for economic automation.
Adaptable Nut Configurations: Single-nut, double-nut, offset preload, or multi-start configurations to match your design.
Low-Noise Designs: Super-S, Super-T, and Super-Z series tailored especially for quieter and smoother movement.
Heavy-Load Solutions: 2–3× overload capacity compared to normal Ball screws.
Preconfigared Support Units: WBK support units for uncomplicated, high-stiffness mounting.

Benefits of our Ball Screw

These all types of ball screws gives multiple types of benefits such as:

Positioning You Can Rely On: Reliable positioning for machining, robotics, and automation.
Space-Saving Solutions: Nut shapes with compact space requirements perfect for modern close-space applications.
Quiet Precision: Less vibration and virtually silent performance for sensitive applications.
Rigidity Without Compromise: Zero backlash preload solutions for maximum stiffness.
Travel Efficiency: Multi-start screws allow efficient travel per revolution to enhance cycle times.
Reliability Under Load: Heavy-duty and long-life operation under high thrust.

Applications of our Ball Screw

A prominent ball screw dealers in Pune, these all types of ball screws are highly applied in multiple applications such as:

Robotics – High-performance, high-speed, and reliable motion systems.
Semiconductors – Low-vibration, high-precision solutions for application in cleanrooms.
Medical Devices – Ground screws for small surgical instruments and diagnostic equipment.
Packaging & Printing – Low-noise, high-speed solutions for round-the-clock operation.
Heavy Industrial Equipment – Max load capacity for most demanding applications.

Teccneex Precision Motion Engineering is a well-known ball screw manufacturers in Pune, suppliers and dealers in Pune, are providing the best quality of ball screws. At Teccneex, we believe the choice of the appropriate ball screw is really a matter of finding that ideal harmony between precision, speed, and load capacity and your specific application needs. That's why we offer so many to select from—precision-ground Super-S series for very quiet high-speed movement, to heavy-duty drive Ball screws able to plow through industrial-grade demand.

Whether you're designing for precision, speed, or power, Teccneex Ball screws are bound to propel your innovation. Contact us today for more information!
